This article is for system administrators who are interested in using Group Policy specifically to configure Redline comparison profiles settings for their users using Draftable Legal. This article will show the additional steps required in addition to Group Policy configuration in order to get this setting configured properly.
Setting up
Ensure you have already followed the Draftable Pro Group Policy guide in respect to adding the templates for the group policy.

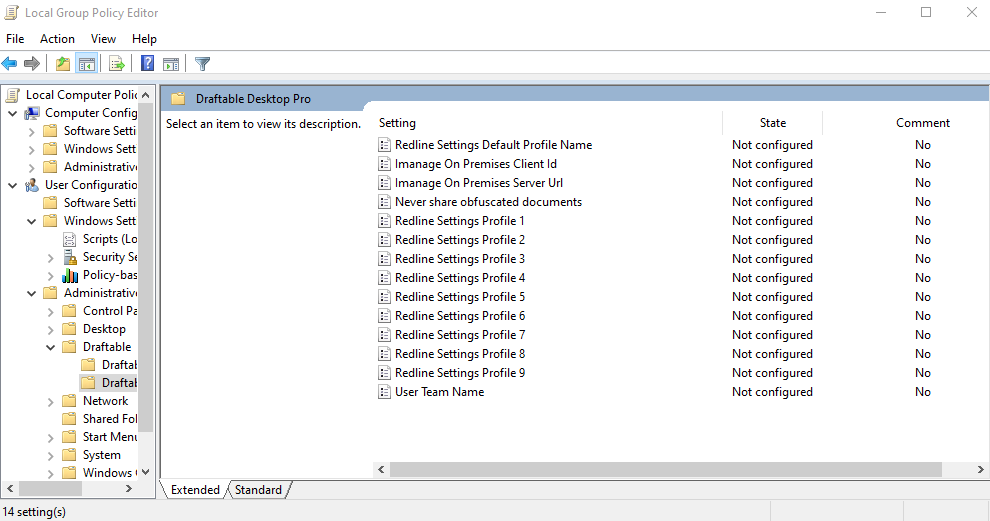

After installing the group policy template you should see following policies in the Draftable Desktop Pro section:
Getting the profile JSON ready
To pre-configure the Redline settings profiles within group policy, you must already have the JSON for profile ready to be added into the group policy setting. To get this, see the process below:

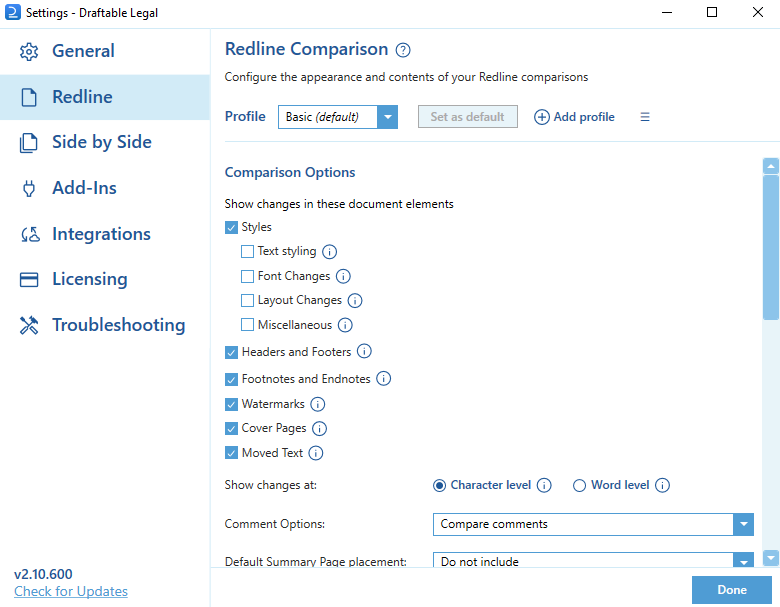

- Go to the Redline section within the settings menu

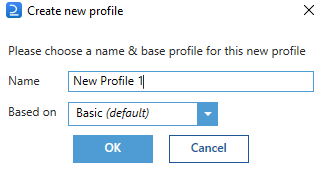

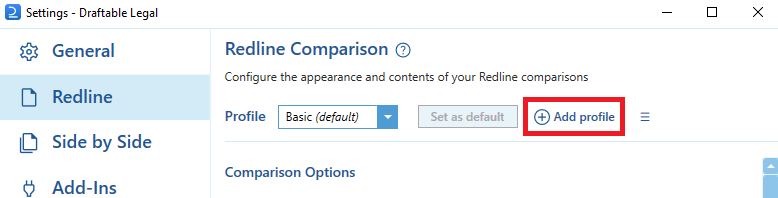

- Select Add profile, then give the profile a name and click OK
- Start building the profile as required for your user by selecting the settings desired. Then once you have finished building the profile, export it by clicking on the option icon, and then selecting export
- A new window will appear to save the profile to your desired location. Do so and select save
- Navigate to where the JSON has been saved and access the file
This is your profile JSON data, and is required for your group policy Redline profile settings. When required, copy the entire JSON string and save it into your group policy, which is outlined in the next step.
Configuring Redline profiles within group policy
There are a few components to the Redline profiles configuration in group policy. Configuring Redline profiles to be loaded for the user, team allocation for what profiles users can see and setting the default Redline profile used.
Configuring the team name for user
As an administrator, you can allocate a user to a team as a way to further distinguish what profiles they can use from the Redline settings configured by group policy. Mutliple team names can exist, which has the benefit of easily allocating which profiles are loaded for different groups of users.
Note: This step is entirely optional, and only required if you wish for certain users to only use certain Redline profiles.
- Using the Group policy editor of choice, navigate to the Draftable Desktop Pro policy templates
- Double click on User Team Name
- Enable the policy and set a string based name for the user in the Set team name for the user field. Alternatively, putting a wildcard * for the user, will allow them to see all profiles from all teams.
- Click Apply and then OK for the policy to take effect.
The user now has a team name allocated to their account via group policy.
Configuring the Redline profiles
You can configure up to 10 Redline profiles that can be automatically loaded into your user machines. Here is how you configure the Redline profiles:
- Using the Group policy editor of choice, navigate to the Draftable Desktop Pro policy templates

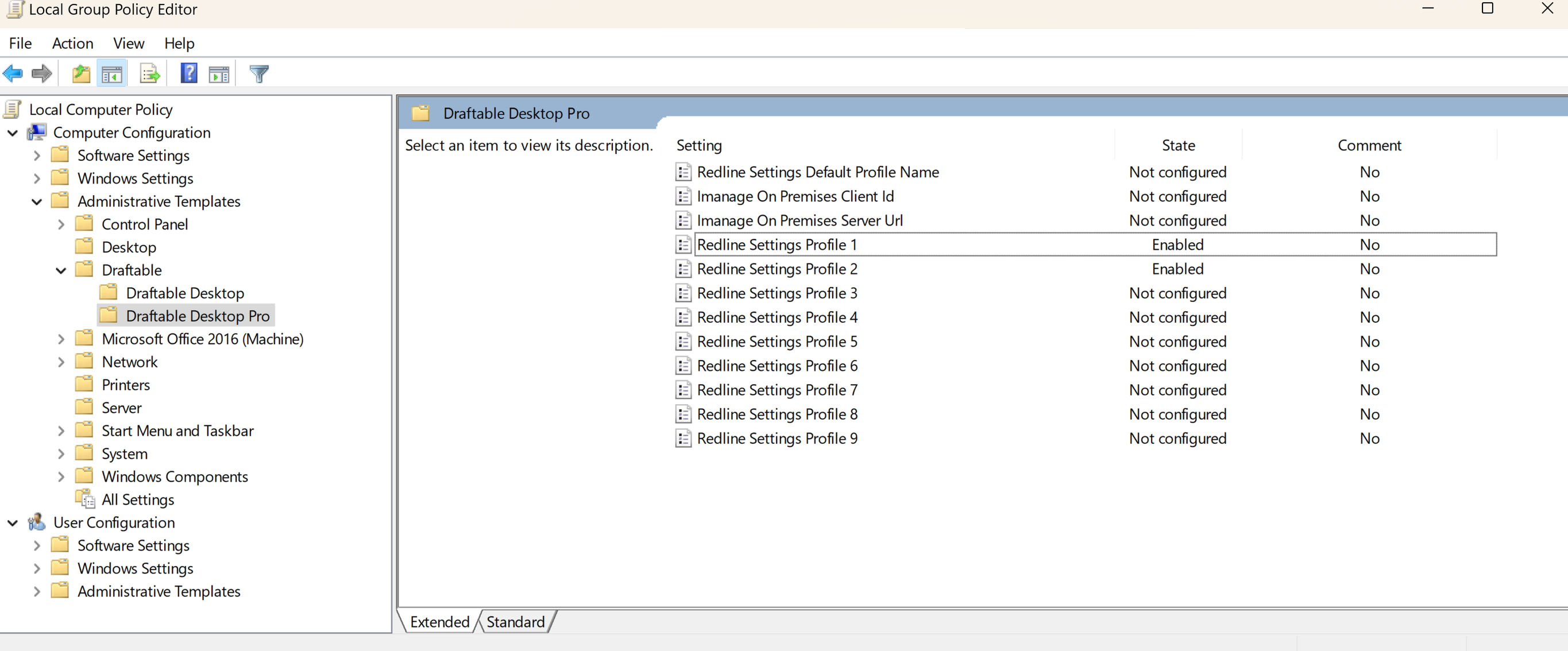

- Double click on the Redline setting profile you wish to configure
- Enable the policy and paste the Redline profile JSON (that we created using the processed outlined earlier in this article) into the Paste Redline Profile JSON here field.
- Optionally: you can enter the team name of the Redline setting profile, so that only users with that team name can see that profile. If you would like to do this, add the team name in the Team name field.
- Click Apply and then OK for the policy to take effect.
Next time your user loads Draftable Legal, the Redline profiles configured in group policy will be loaded for the user to utilize.
Setting the default profile
You can select the default Redline profile that is used when a user loads Draftable Legal. To do this follow the procedure below:
- Using the Group policy editor of choice, navigate to the Draftable Desktop Pro policy templates
- Double click on the Redline Default Profile Name policy
- Enable the policy and enter the name of the profile you wish to load as default into the Set default Redline Profile name field.
Note: This is the name of profile you saved it as, not the name of the policy. - Click Apply and then OK for the policy to take effect.
Next time your user loads Draftable Legal, the selected default Redline profile policy will be loaded.
