Set up guide for Draftable Legal integration with Worldox

  • Updated

Draftable Legal allows you to integrate your Worldox. This allows users to easily load input files from, and save comparison outputs to Worldox. This article will provide a step-by-step guide on how to set up this integration by adding Draftable Legal's webhooks to your Worldox application .ini files.

This guide assumes the user already has installed Worldox correctly and validated that it works correctly.

Please note:

  • This is a technical integration guide written for administrator-level users.
  • This is not a guide for using Worldox with Draftable Legal, if you are looking for information on how to use Worldox with Draftable Legal see here.
  • Changes to the WORDLOX.ini file that enable the Compare button in the Worldox ribbon will only work for users that have received an associated update from Worldox.
  • After completion of this guide, end users will need to enable the Worldox integration in the integrations tab in the Settings menu.

Add Draftable Legal webhook to your Worldox .ini files

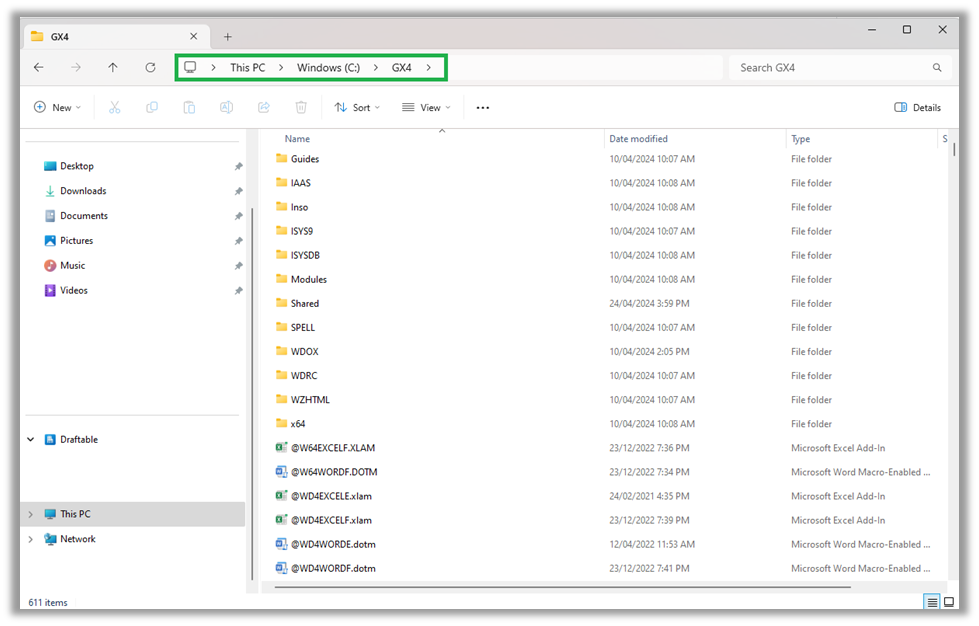

  1. In your file explorer, navigate to the root directory of the Worldox install. The default location is This PC > Windows (C:) > GX4.

  2. In the root directory (in the example above, the GX4 folder), find the WDUSER32.ini file, open it and copy and paste the following text below the ----- lines
    [Draftable!Open Worldox]
    Active_Trigger=1
    ModuleName=DraftableDesktop
    ApplicationClass=HwndWrapper*
    PopupClass=#32770
    PopupTitle=Open Worldox
    Process_Type=1
    MessageID=71
    [Draftable!Save Comparison Output to Worldox]
    Active_Trigger=1
    ModuleName=DraftableDesktop
    ApplicationClass=HwndWrapper*
    PopupClass=#32770
    PopupTitle=Save Comparison Output to Worldox
    Process_Type=2
    Wait=1
    MessageID=71
  3. Save the file and close
  4. Next, in the root directory find the WDUSER.ini file, open it and copy and paste the following text below the ----- lines
    [Draftable!Open Worldox]
    ApplicationName=Draftable
    Title=Draftable - New Comparison from File
    NotForEdit=1
    Macro=&N\vf\n
    CancelMacro=\c
    [Draftable!Save Comparison Output to Worldox]
    ApplicationName=Draftable
    Title=Draftable Save Comparison Output As
    Macro=\vf\vs\n
    CancelMacro=\c
    FileNameID=54,48,1001
  5. Save the file and close
  6. Lastly,  in the root directory find the WORLDOX.ini file, open it and copy and paste the following text at the end of the document (please note: this enables the Compare button in the Worldox ribbon but will only work for users that have received an associated required update from Worldox)
    [Compare Programs]
    Draftable Legal=%USERPROFILE%\AppData\Local\DraftableDesktop\DraftableDesktop.exe "%ot" "%nt"
    [Compare]
    Run=OK

  7. Changes to the WORDLOX.ini file that enable the Compare button in the Worldox ribbon will only work for users that have received an associated update from Worldox.
  8. Save the file and close
  9. You should now be able to use the Draftable Worldox integration next time you launch Worldox on your machine.

To learn more about how to use Worldox and Draftable, see other articles in this section.



If you encounter problems setting up this integration, please contact support@draftable.com
