Saving redline outputs

1

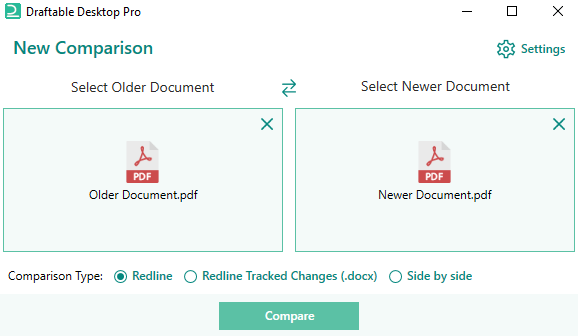

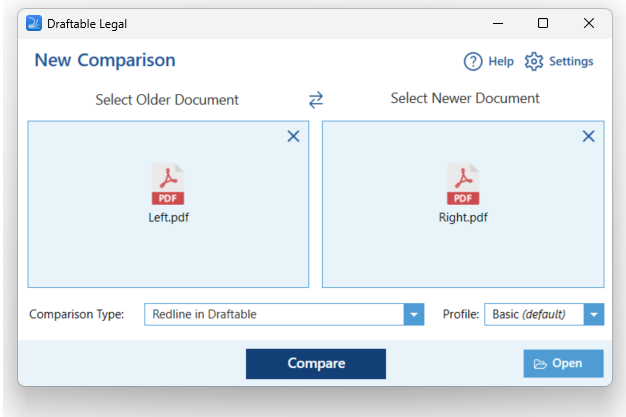

Start by running a Redline in Draftable comparison.
2

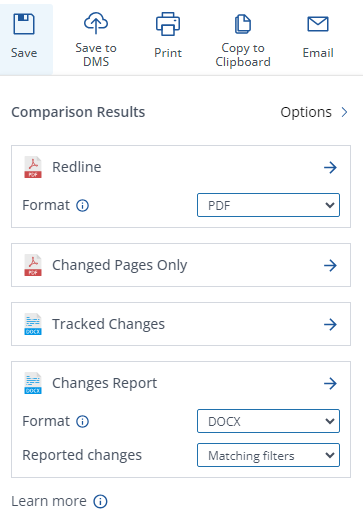

Select Save in the comparison viewer ribbon. In the Comparison Results panel, tick the checkbox beside each output you want. You can select more than one. The available outputs depend on your comparison:
  • Redline (PDF or DOCX): This output shows the newer document and marks up all changes on top of that in the Redline view. You can select between DOCX and PDF file-type options.
  • Changed Pages Only: This output shows only the changed pages between the older and newer document. It marks up all changes in the changed pages as a Redline view
  • Tracked Changes: This output is an MS Office document with the changes shown in Track Changes (a Microsoft Office feature)
  • Changes report: Creates a report of all the changes detected within the comparison. This allows users to share the Change List, along with any Tags and Notes with colleagues or external parties via the output options

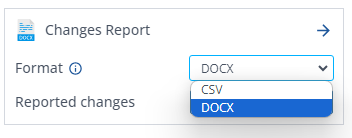

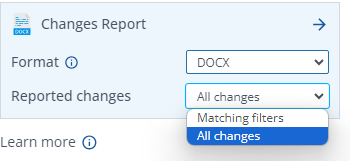

    • Choose DOCX or CSV from the format dropdown. All changes includes only detected changes, with no unchanged rows. Matching filters includes only changes that match your current Change List filters.
  • AI-Ready Redline: Saves a portable text representation of all changes (moves, insertions, and deletions) as a .md file, formatted for use with generative AI tools. A Reported Changes dropdown lets you choose between All changes or Matching filters. For full details, see AI-Ready Redline: Export changes for use with generative AI tools.
3
Click the pencil icon on an output row to expand its details. Rename the file and choose its format or other options where available.If you want a single archive, tick Zip files at the foot of the panel.
4
Click Save at the foot of the panel. Choose a filename and location for a single file, or a destination folder when saving multiple files.
5
A notification confirms when the export is complete.

Summary page

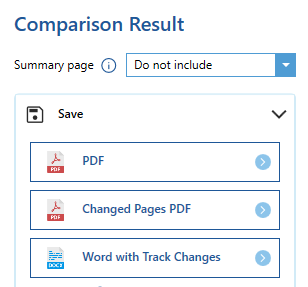

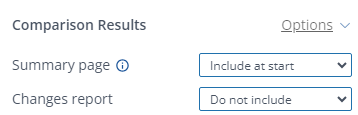

In the Save panel, select Options beside Comparison Results to show the summary page settings.

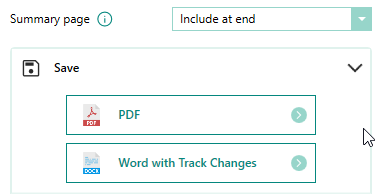

This allows you to add a summary page to the output and there are 3 options:
  • Include at end: Adds a summary page at the end of the output
  • Include at start: Adds a summary page at the start of the output
  • Do not include: Does not add a summary page
You can also choose to include a changes report as well, with the same options as above.
